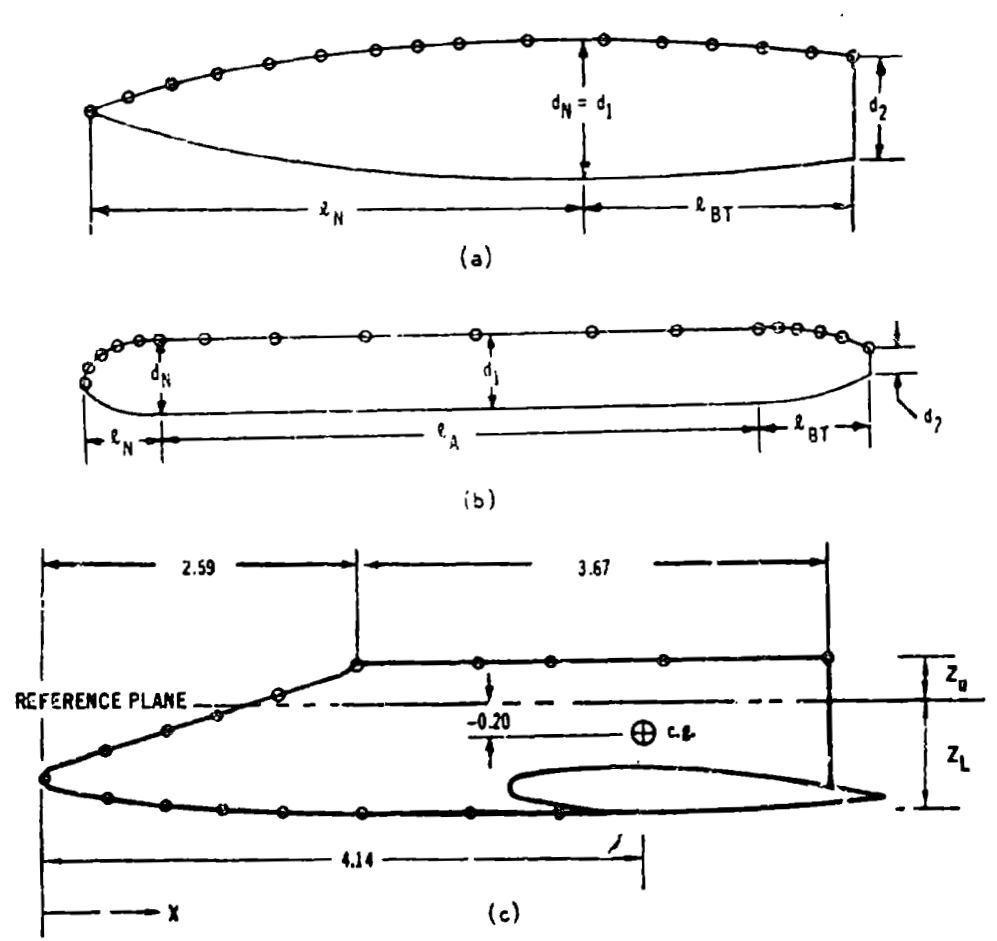

다음 그림은 세 가지 기체 구성과 형상 변수를 지정할 X 좌표이다. 곡률과 기체 윤곽의 급격한 변화를 정의하는 데 사용된 점을 주목하자. 구성 (c)는 모든 속도 영역에서 기체 단독 분석을 설명하려고 예제 1로 선택되었다. 대략적인 축대칭 기체와 곡선형 기체의 아음속 기체 분석을 수행하였다.
| X (FT) | S (FT2) | P (FT) | R (FT) | ZU (FT) | ZL (FT) |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.595 | -0.595 |
| 0.258 | 0.080 | 1.00 | 0.186 | -0.476 | -0.715 |
| 0.589 | 0.160 | 1.42 | 0.286 | -0.372 | -0.754 |
| 1.26 | 0.323 | 2.01 | 0.424 | -0.138 | -0.805 |
| 2.26 | 0.751 | 3.08 | 0.533 | 0.200 | -0.868 |
| 2.59 | 0.883 | 3.34 | 0.533 | 0.334 | -0.868 |
| 2.93 | 0.939 | 3.44 | 0.533 | 0.343 | -0.868 |
| 3.59 | 1.032 | 3.61 | 0.533 | 0.343 | -0.868 |
| 4.57 | 1.032 | 3.61 | 0.533 | 0.343 | -0.868 |
| 6.26 | 1.032 | 3.61 | 0.533 | 0.343 | -0.868 |
예제 1에서 4가지 해석의 요약은 다음과 같다.
| Case No. | Configuration | Mach No. | Comments |
| 1 | Body | 0.60 | 축대칭 해 |
| 2 | Body | 0.60 | 곡선형 해 |
| 3 | Body | 0.9,1.4,2.5 | 마하 1.4와 2.5에서 초음속 해석 |
| 4 | Body | 2.5 | 극초음속 해석 |
이 문제는 CASEID, DUMP CASE, SAVE, 및 NEXT CASE 명령어를 사용하는 방법을 보여준다.
입력 파일
$FLTCON
NMACH = 1.0,
MACH(1) = 0.60,
NALPHA = 11.0,
ALSCHD(1) = -6.0,-4.0,-2.0,0.0,2.0,4.0,8.0,12.0,16.0,20.0,24.0,
RNNUB=4.28E6,
$END
$OPTINS
SREF = 8.85,
CBARR = 2.48,
BLREF = 4.28,
$END
$SYNTHS
XCG = 4.14,
ZCG = -0.20,
$END
$BODY
NX = 10.0,
X(1) = 0.0,0.258,0.589,1.260,2.260,2.590,2.930,3.590,4.570,6.260,
R(1) = 0.0,0.186,0.286,0.424,0.533,0.533,0.533,0.533,0.533,0.533,
S(1) = 0.0,0.080,0.160,0.323,0.751,0.883,0.939,1.032,1.032,1.032,
P(1) = 0.0,1.00,1.42,2.01,3.08,3.34,3.44,3.61,3.61,3.61,
$END
$BODY
BNOSE = 1.0,
BLN = 2.59,
BLA = 3.67,
$END
CASEID APPROXIMATE AXISYMMETRIC BODY SOLUTION, EXAMPLE PROBLEM 1, CASE 1
SAVE
DUMP CASE
NEXT CASE
$BODY ZU(1) = -.595,-.476,-.372,-.138,.200,.334,.343,.343,.343,.343,
ZL(1) = -.595,-.715,-.754,-.805,-.868,-.868,-.868,-.868,-.868,-.868,
$END
CASEID ASYMMETRIC (CAMBERED) BODY SOLUTION,EXAMPLE PROBLEM 1,CASE 2
SAVE
NEXT CASE
$FLTCON
NMACH = 3.0,
MACH(1) = 0.9,1.4,2.5,
RNNUB = 6.4E6,9.96E6,17.0E6,
$END
SAVE
CASEID ASYMMETRIC (CAMBERED) BODY SOLUTION, EXAMPLE PROBLEM 1, CASE 3
NEXT CASE
$FLTCON
NMACH = 1.0,
MACH(1) = 2.5,
RNNUB = 17.86E6,
HYPERS = .TRUE.,
$END
$BODY
DS = 0.0,
$END
CASEID HYPERSONIC BODY SOLUTION, EXAMPLE PROBLEM 1, CASE 4
NEXT CASE
출력 파일
****************************************************
* USAF STABILITY AND CONTROL DIGITAL DATCOM *
* PROGRAM REV. JAN 96 DIRECT INQUIRIES TO: *
* WRIGHT LABORATORY (WL/FIGC) ATTN: W. BLAKE *
* WRIGHT PATTERSON AFB, OHIO 45433 *
* PHONE (513) 255-6764, FAX (513) 258-4054 *
****************************************************
1 CONERR - INPUT ERROR CHECKING
0 ERROR CODES - N* DENOTES THE NUMBER OF OCCURENCES OF EACH ERROR
0 A - UNKNOWN VARIABLE NAME
0 B - MISSING EQUAL SIGN FOLLOWING VARIABLE NAME
0 C - NON-ARRAY VARIABLE HAS AN ARRAY ELEMENT DESIGNATION - (N)
0 D - NON-ARRAY VARIABLE HAS MULTIPLE VALUES ASSIGNED
0 E - ASSIGNED VALUES EXCEED ARRAY DIMENSION
0 F - SYNTAX ERROR
0****************************** INPUT DATA CARDS ******************************
$FLTCON
NMACH = 1.0,
MACH(1) = 0.60,
NALPHA = 11.0,
ALSCHD(1) = -6.0,-4.0,-2.0,0.0,2.0,4.0,8.0,12.0,16.0,20.0,24.0,
RNNUB=4.28E6,
$END
$OPTINS
SREF = 8.85,
CBARR = 2.48,
BLREF = 4.28,
$END
$SYNTHS
XCG = 4.14,
ZCG = -0.20,
$END
$BODY
NX = 10.0,
X(1) = 0.0,0.258,0.589,1.260,2.260,2.590,2.930,3.590,4.570,6.260,
R(1) = 0.0,0.186,0.286,0.424,0.533,0.533,0.533,0.533,0.533,0.533,
S(1) = 0.0,0.080,0.160,0.323,0.751,0.883,0.939,1.032,1.032,1.032,
P(1) = 0.0,1.00,1.42,2.01,3.08,3.34,3.44,3.61,3.61,3.61,
$END
$BODY
BNOSE = 1.0,
BLN = 2.59,
BLA = 3.67,
$END
CASEID APPROXIMATE AXISYMMETRIC BODY SOLUTION, EXAMPLE PROBLEM 1, CASE 1
SAVE
DUMP CASE
NEXT CASE
$BODY ZU(1) = -.595,-.476,-.372,-.138,.200,.334,.343,.343,.343,.343,
ZL(1) = -.595,-.715,-.754,-.805,-.868,-.868,-.868,-.868,-.868,-.868,
$END
CASEID ASYMMETRIC (CAMBERED) BODY SOLUTION,EXAMPLE PROBLEM 1,CASE 2
SAVE
NEXT CASE
$FLTCON
NMACH = 3.0,
MACH(1) = 0.9,1.4,2.5,
RNNUB = 6.4E6,9.96E6,17.0E6,
$END
SAVE
CASEID ASYMMETRIC (CAMBERED) BODY SOLUTION, EXAMPLE PROBLEM 1, CASE 3
NEXT CASE
$FLTCON
NMACH = 1.0,
MACH(1) = 2.5,
RNNUB = 17.86E6,
HYPERS = .TRUE.,
$END
$BODY
DS = 0.0,
$END
CASEID HYPERSONIC BODY SOLUTION, EXAMPLE PROBLEM 1, CASE 4
NEXT CASE
